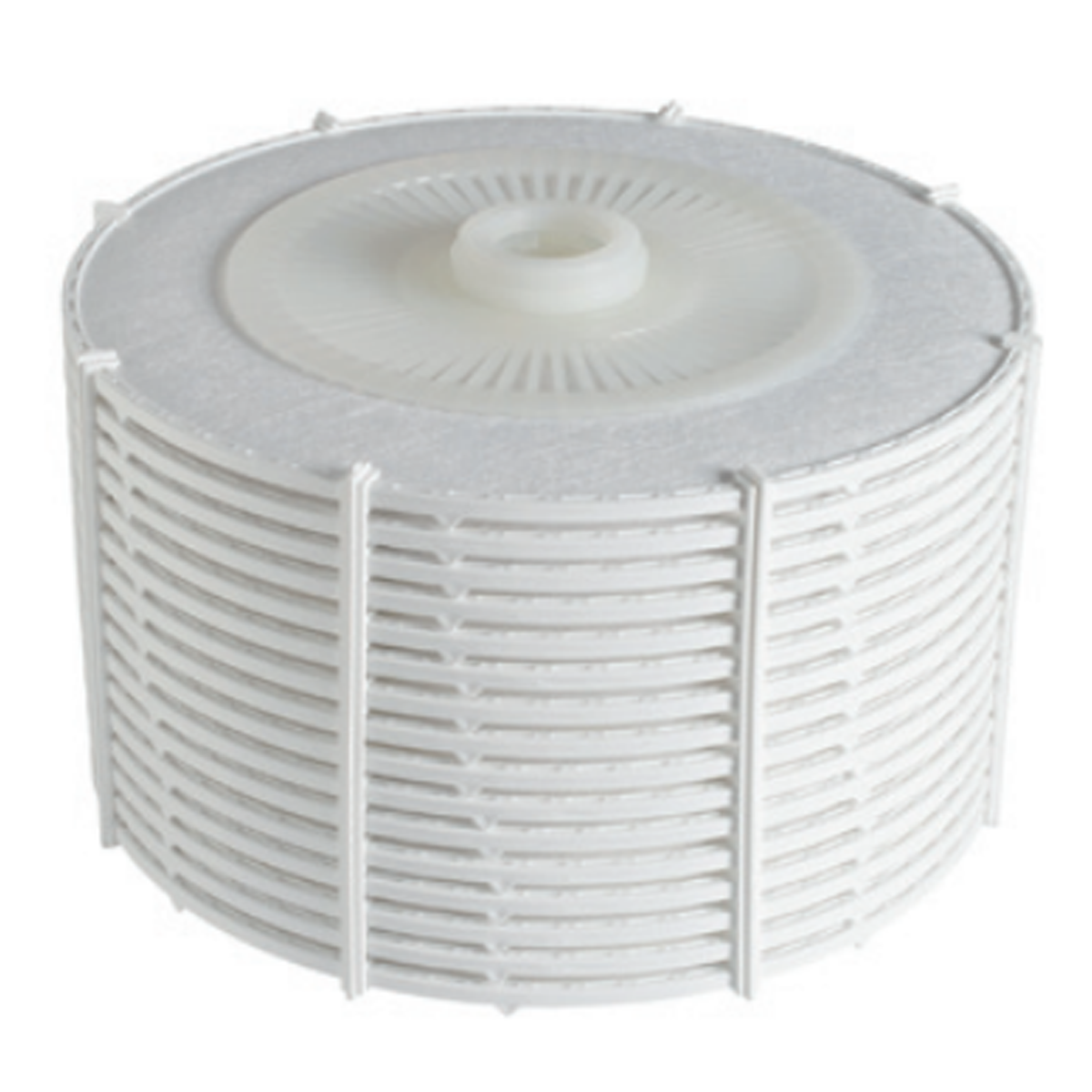

FiltroDisc PLUS Back-Flushable Lenticular Modules
Price range: CAD 331.92 through CAD 475.64
Improved design with back-flush capability for longer filter life.
Download Documentation
- Description
- Additional Information
- Download Documentation
- Make an Inquiry – Filter Media
- Reviews (0)
Product Description
FILTRODISCâ„¢ PLUS2 BACKFLUSHABLE LENTICULAR MODULE
Depth filter modules make it possible to handle large filter areas in a simple manner and have been used in various food & beverage applications for many years. Filtration with such modules is carried out in an enclosed bell housing filter. The filter medium used in lenticular modules is a depth filter sheet. A combination of surface, depth and adsorptive filtration mechanisms lead to a high filtration performance. Depth filter products represent a cost-effective filtration solution.
With the FILTRODISCâ„¢ PLUS2, a new generation of depth filter modules is available. Due to their improved design and integrated support frame, the FILTRODISCâ„¢ PLUS2 modules can be backflushed in order to remove surface deposits more effectively. The filter media used for these modules are high-capacity Filtrox depth filter sheets (H grades) with even higher dirt holding capacity than standard grades.
Benefits
FILTRODISCâ„¢ PLUS2 modules show the following benefits which result in important cost savings:
- Possibility of backflushing of the modules can lead to longer filter life.
- H grades filter media grant increased filtration capacity.
- FILTRODISCâ„¢ PLUS2 modules can be installed in regular lenticular module housings with DOE adapter type.
- For backflushing the FILTRODISCâ„¢ PLUS2 modules, no additional stabilization parts are needed.
Additional Information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Grade | AF23, AF33, AF73, AF103 |
| Size | 12", 16" |
Download Documentation
We’re a supplier to the commercial winery, brewery, cidery & distillery industries across Canada & North America. Please fill in the form below to contact our in-house sales consultants. We’ll get back to you within 1-2 working days.
